Color‑Coated Roofing Sheets — Strong. Stylish. Long‑Lasting
Factory‑profiled, leak‑proof roofing with premium coatings and PAN‑India supply for warehouses, plants, and commercial builds
Available in PPGI (Pre‑Painted GI) and PPGL (Pre‑Painted Galvalume) variants — choose based on environment, corrosion class, and budget.
About
Quick Context:
- PPGI uses zinc (GI) coating with paint on top — high value for inland/standard environments.
- PPGL uses Al‑Zn (Galvalume) coating — superior corrosion resistance and heat reflectivity; better for coastal/industrial zones.
Special Features — The MPS Advantage
• High corrosion resistance: GI (GSM 80–275) / Galvalume AZ70 / AZ150 / AZ200 options

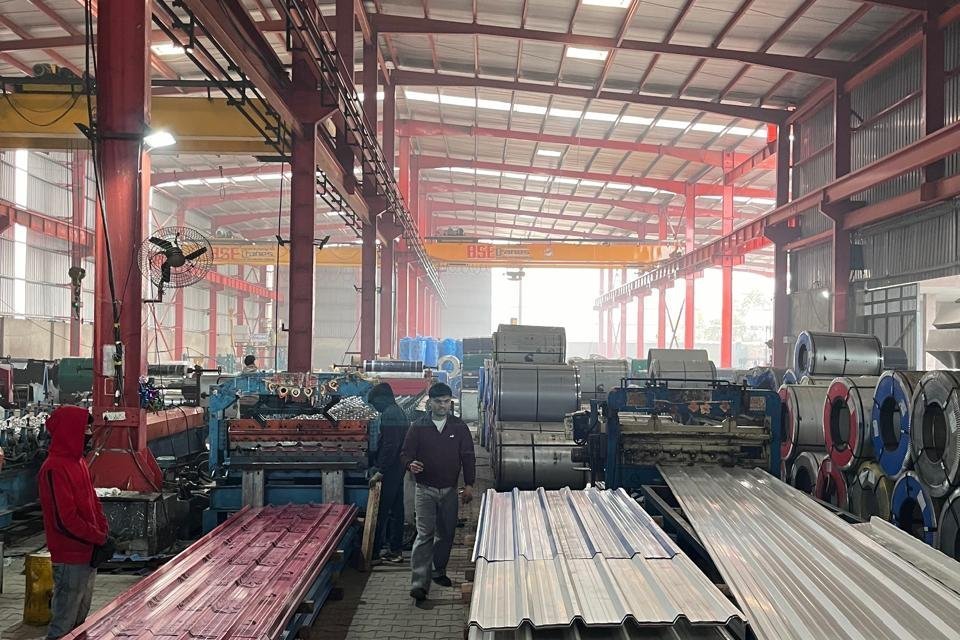

• Precision roll‑forming for tight overlap fit and faster erection

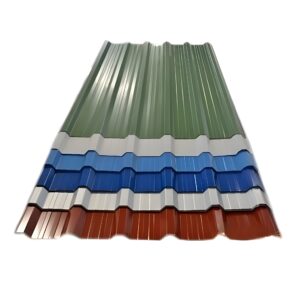

• Colour systems: RMP / SMP / PVDF for long‑lasting gloss & shade stability
• Leak‑proof detailing: branded self‑drilling fasteners with EPDM, ridge/valley flashings, butyl tapes
• Cut‑to‑length service (reduced wastage) + on‑time dispatch with digital tracking
• 25+ QC checks from coil intake to final packing; MTC & brand warranty with invoice
Applications

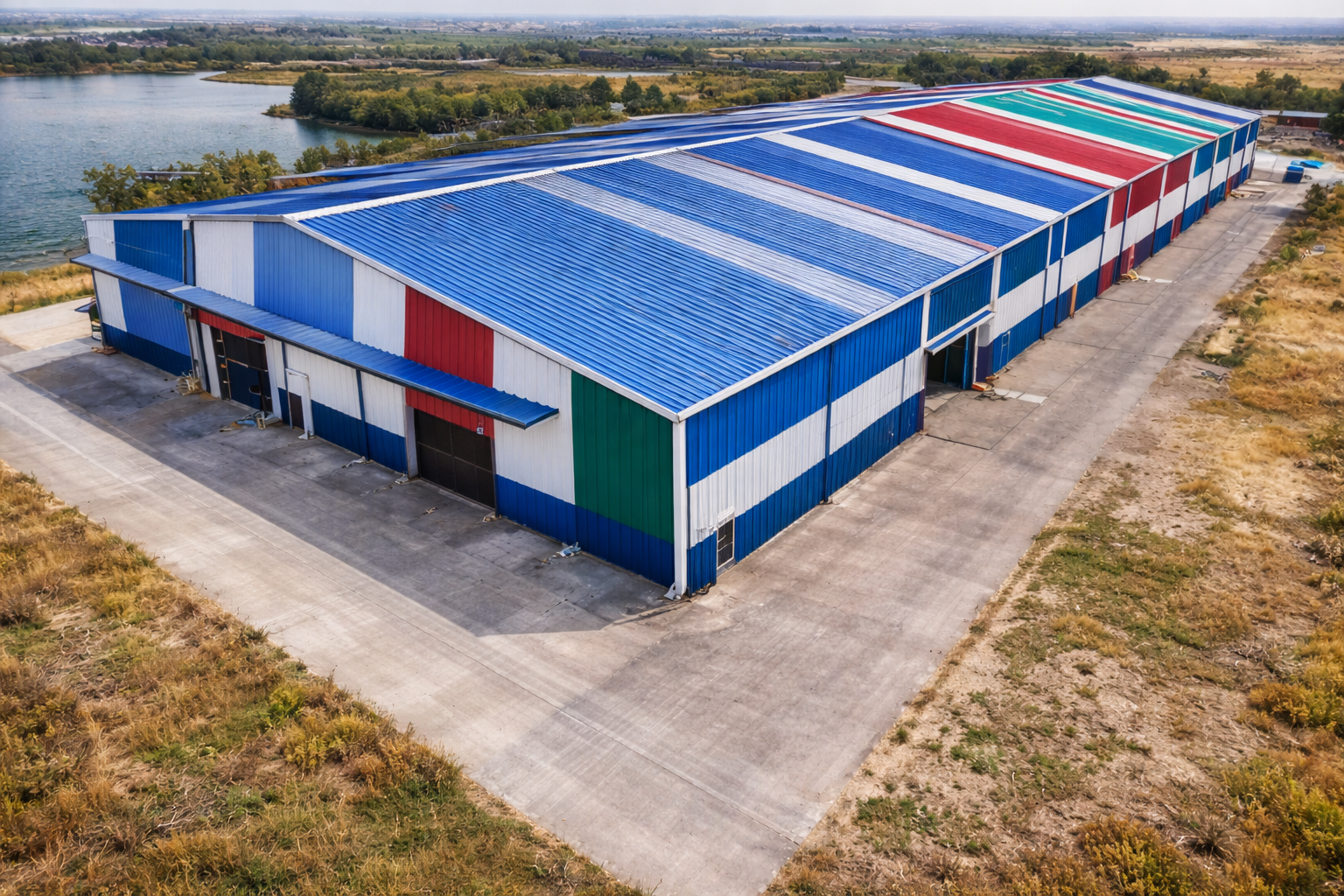

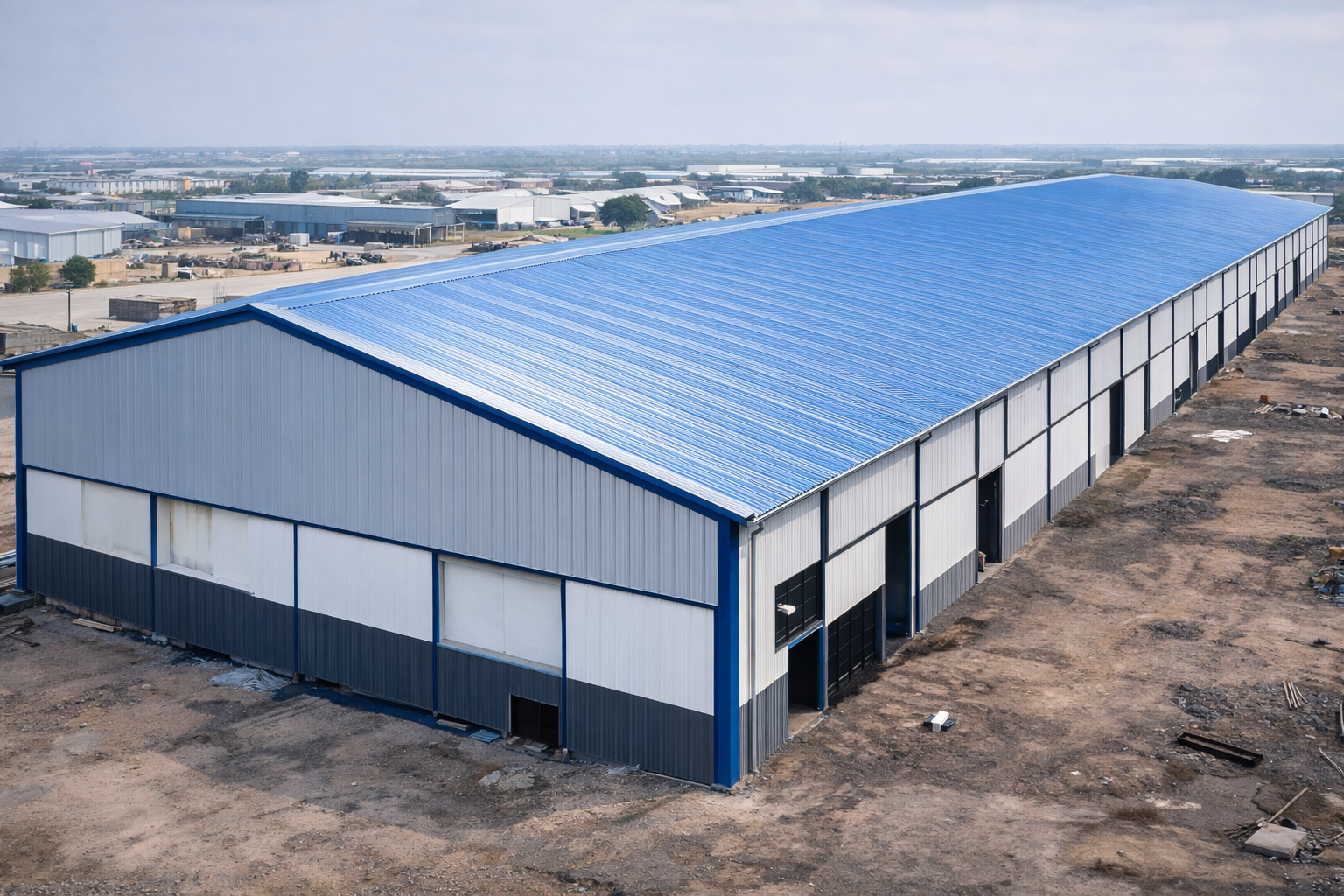

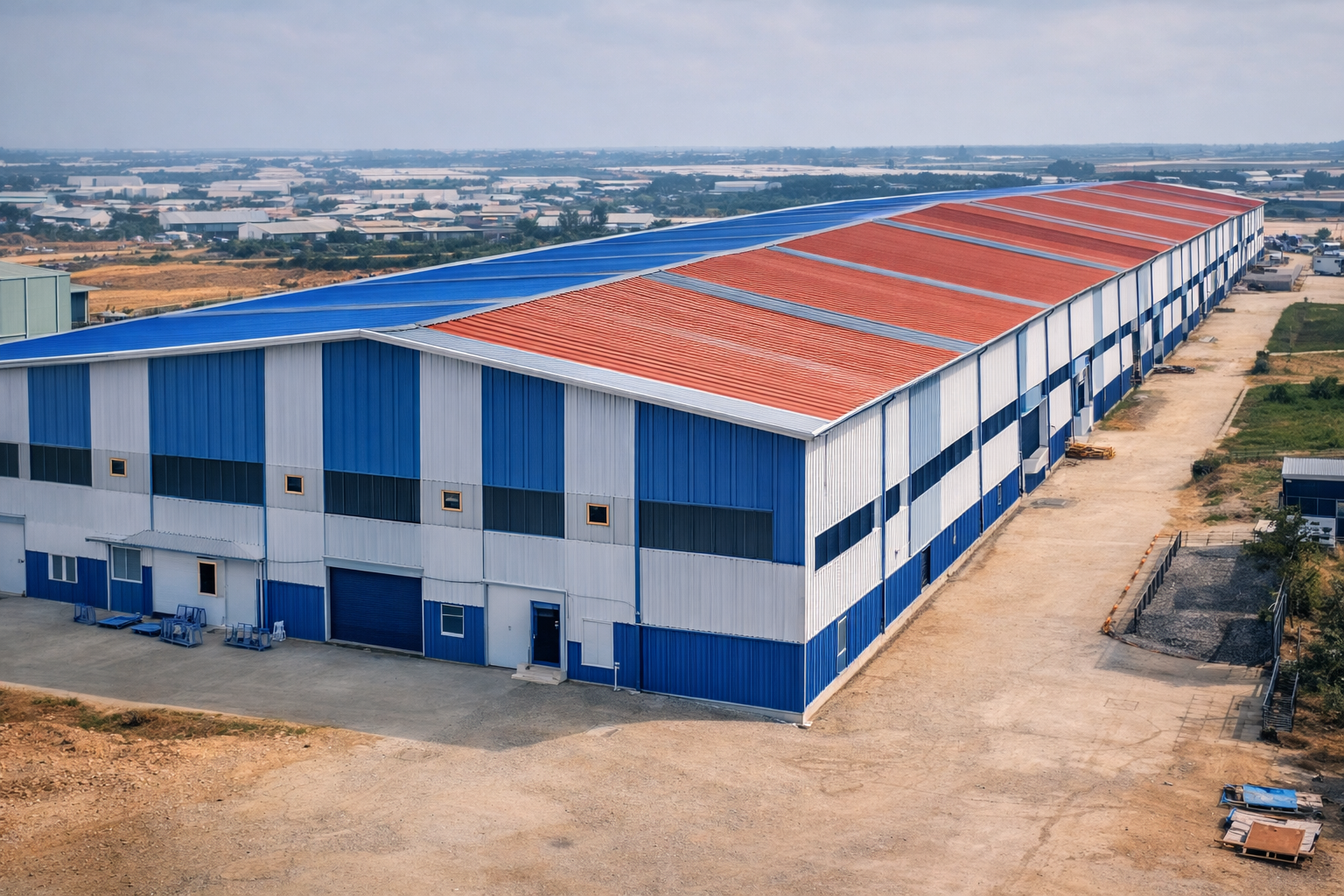

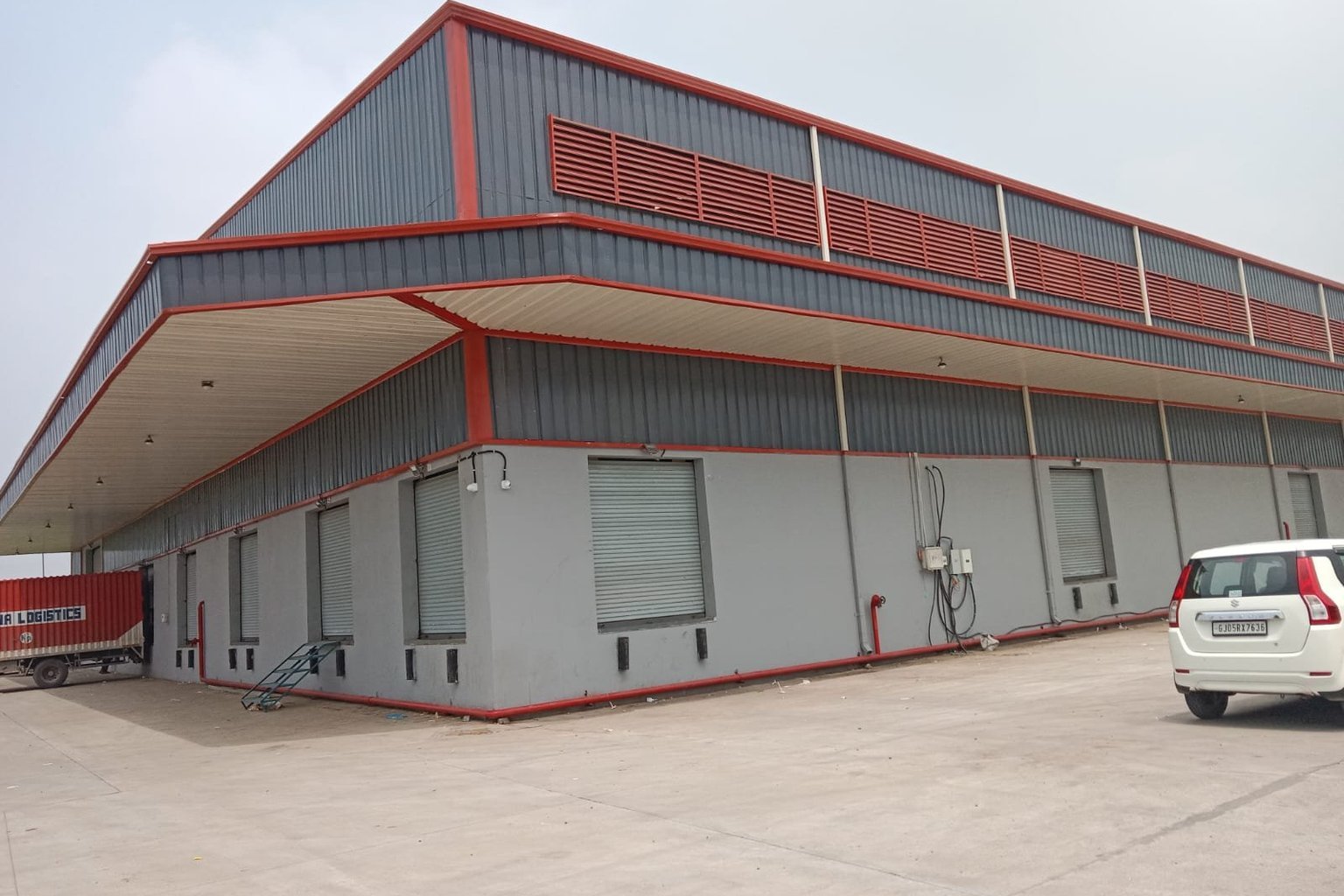

• Warehouses & Logistics Hubs — long spans, quick build, low maintenance

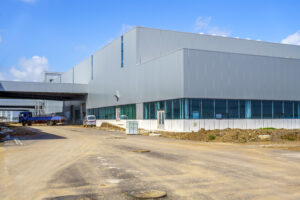

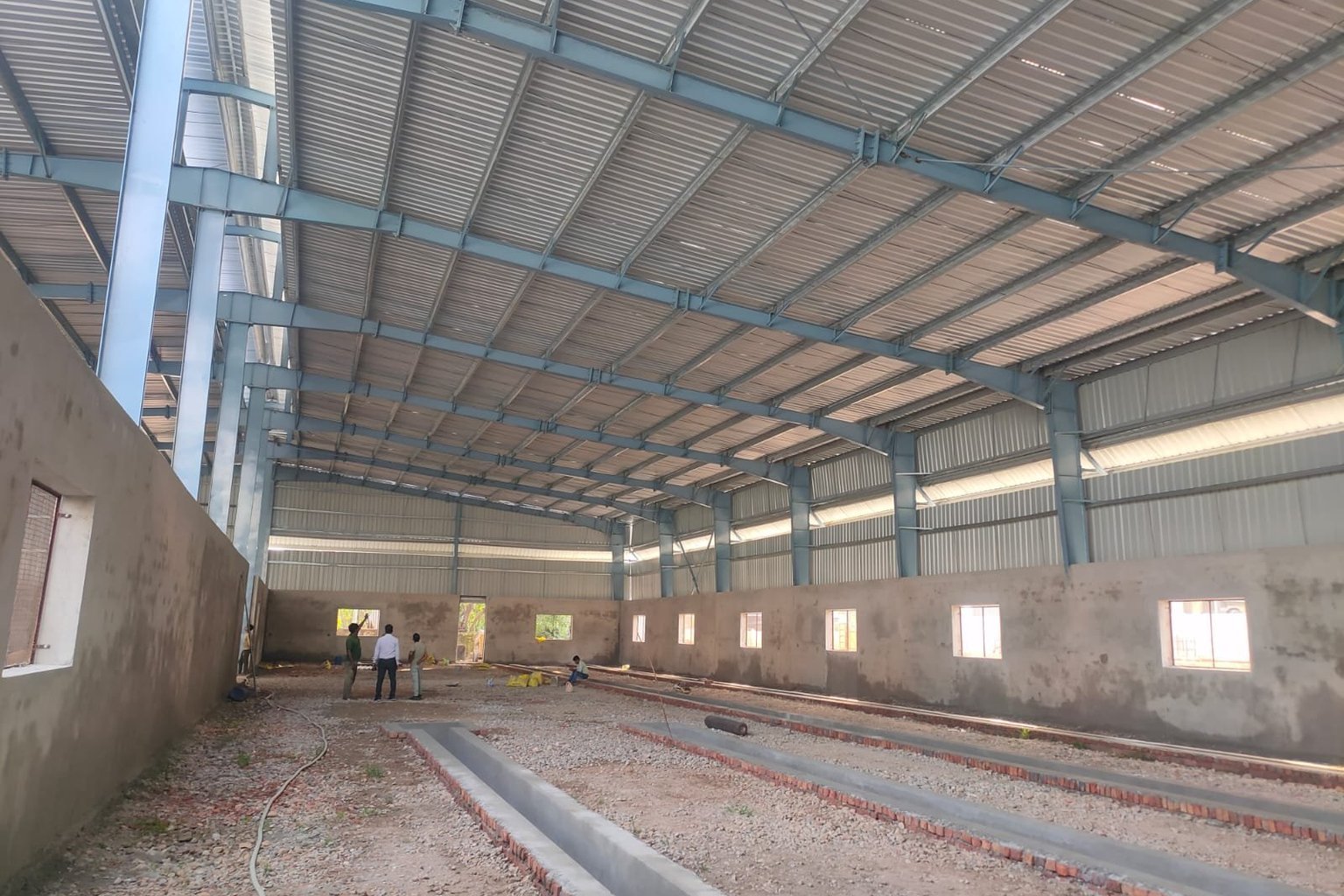

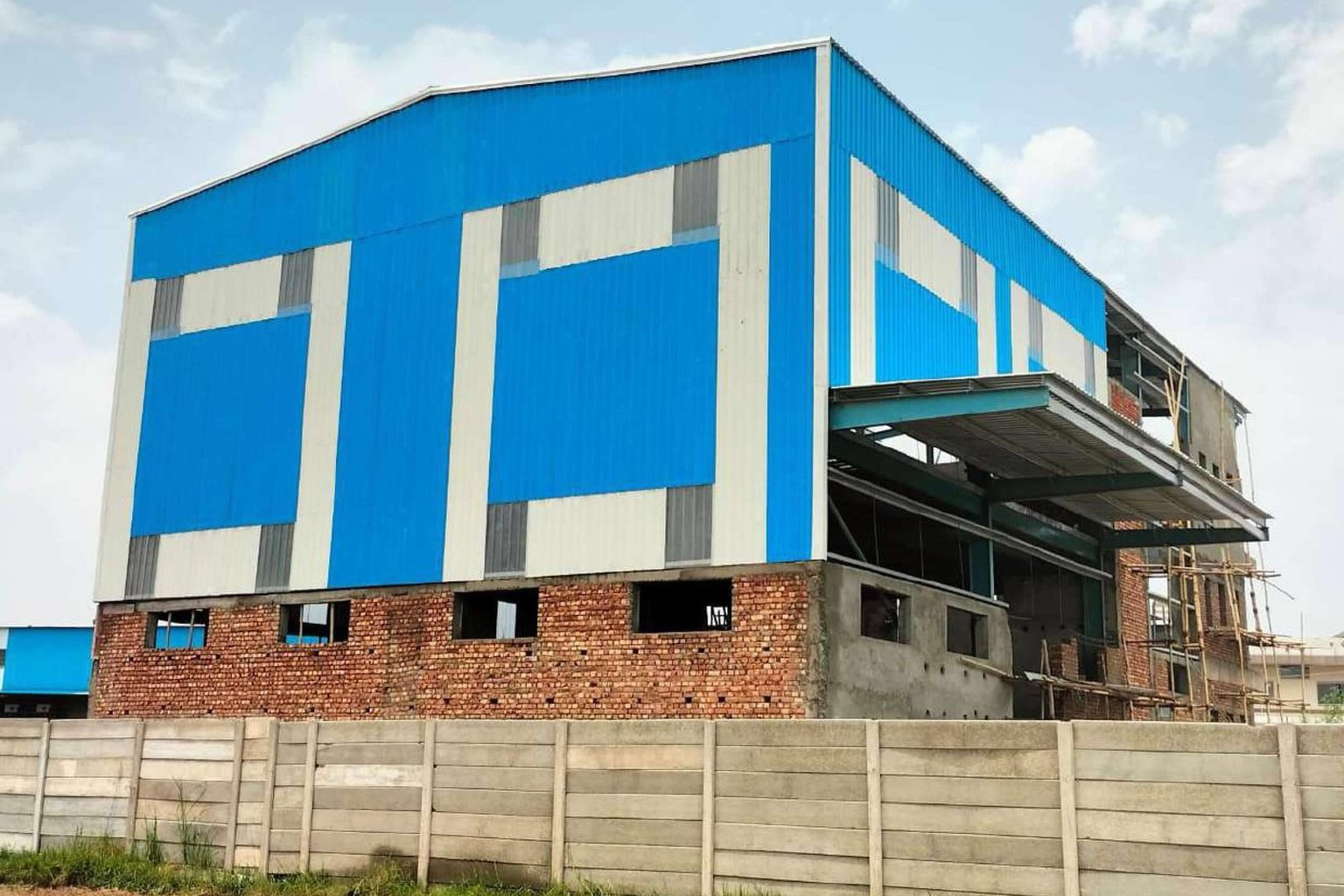

• Industrial Sheds & Plants — robust roofing for continuous operations
• Cold Storage & Food Units — thermal efficiency with proper insulation build‑up

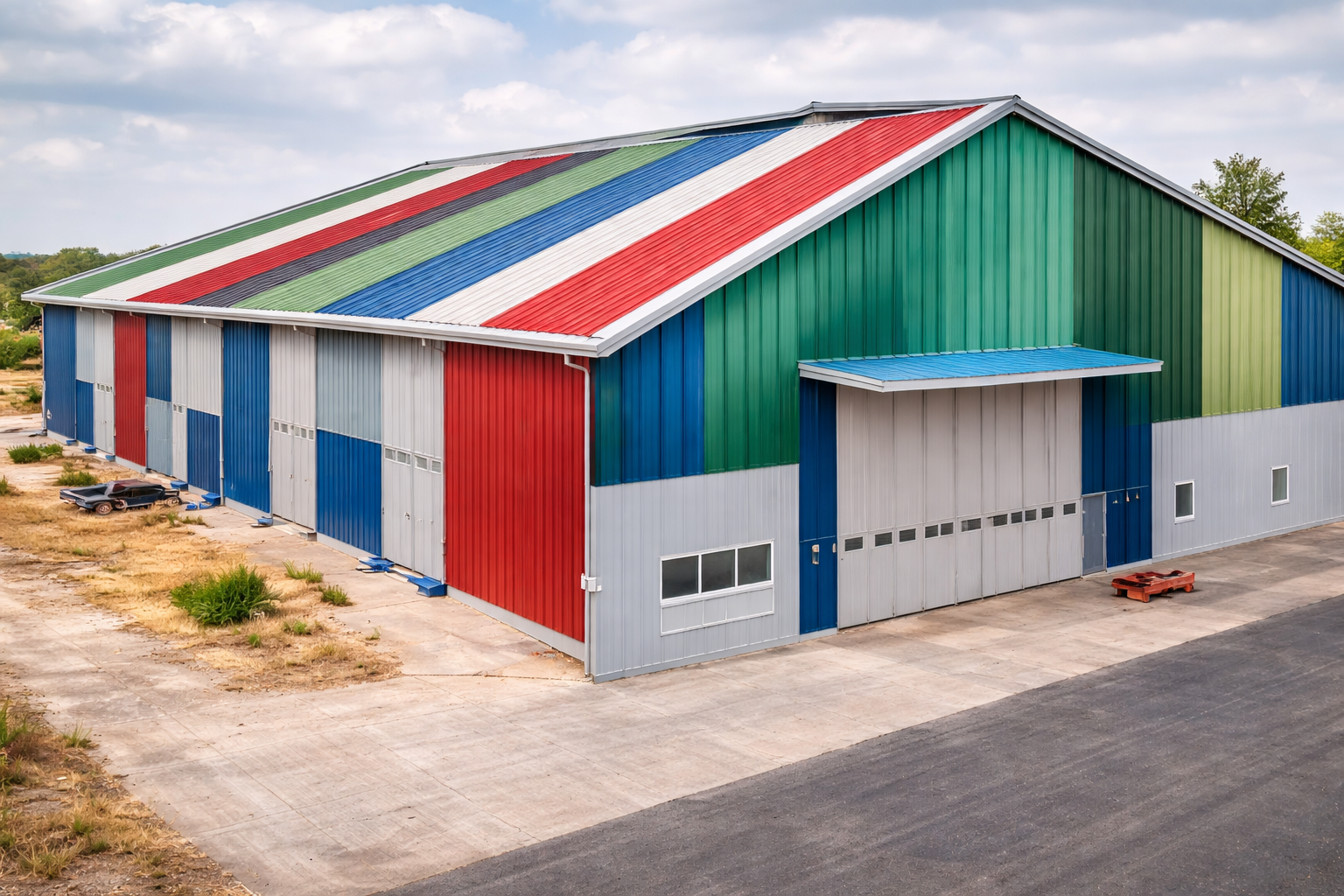

• Commercial & Retail — premium colours and clean finishes

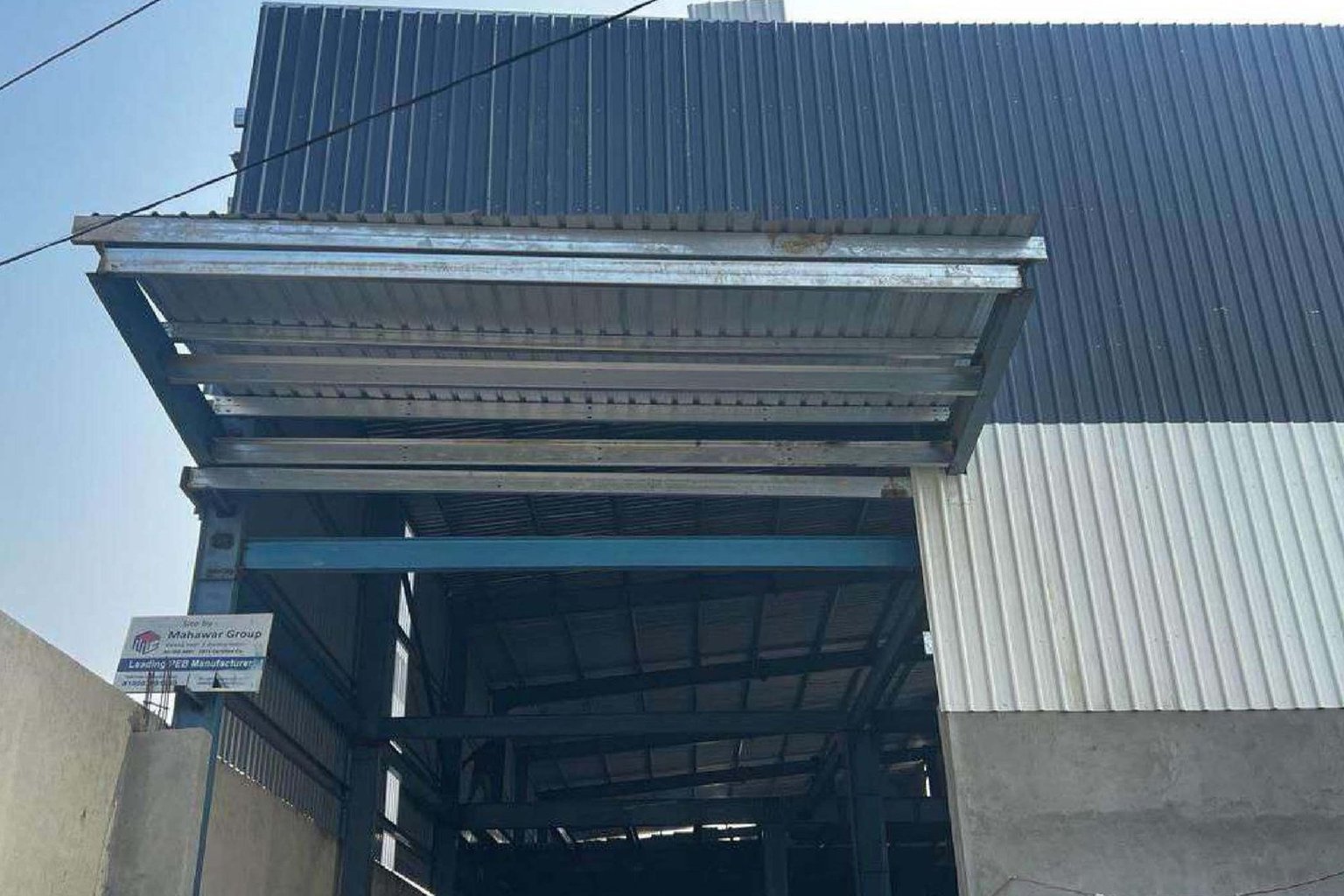

• Agriculture & Dairy — corrosion resistance and easy washdown
• Institutional / Community — economical, fast, and neat installs
Technical Specifications
| Parameter | Details |
| Thickness (TCT) | 0.30–0.80 mm (popular: 0.47 / 0.50 / 0.60 mm) |
| Width | 900–1250 mm (effective cover varies by profile) |
| Base Metal | GI (Zinc) / PPGL (Al‑Zn: AZ70 / AZ150 / AZ200) |
| Yield Strength | 240 / 350 / 550 MPa (as required) |
| Paint Systems | RMP / SMP / PVDF (Top coat ~18–25 μm, Back coat ~5–10 μm) |
| Profiles | Hi‑Rib, Corrugated/GC, Standing Seam, Tile profile |
| Lengths | Cut‑to‑size (typ. 3–12 m; longer on request) |

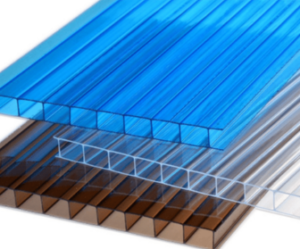

| Accessories | Ridge, gutters & downpipes, barge & eave trims, daylight sheets, ventilators, fasteners, sealants |
| Standards | Supply aligned to applicable IS/ASTM; MTC & brand warranty provided |

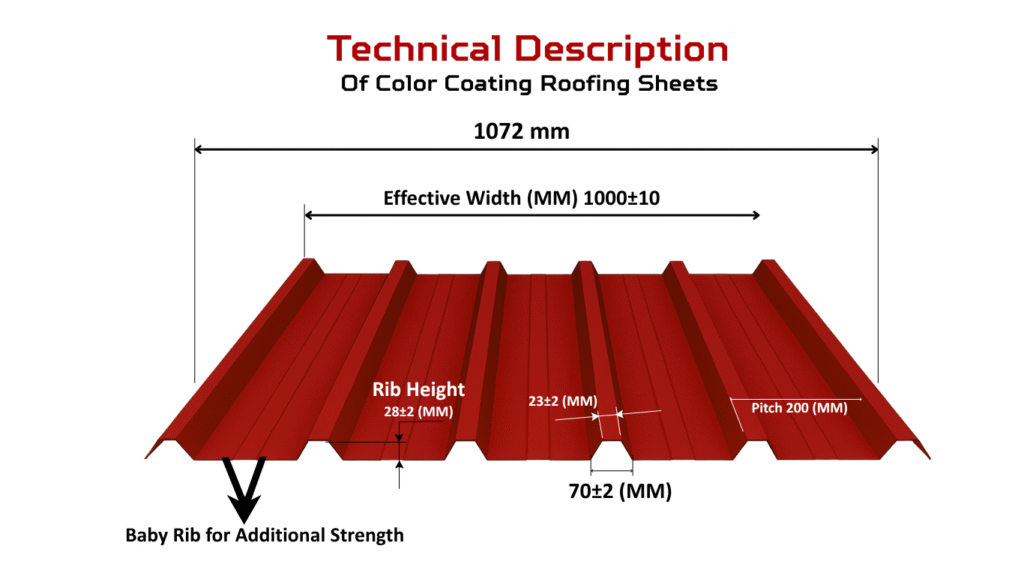

Profiles & Effective Cover (Indicative)
| Profile | Effective Cover (mm) | Pitch/Rib (mm) | Notes |

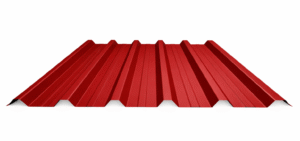

| Hi‑Rib (Industrial) | 1000–1080 | 180–250 | Fast install, high drainage; ideal for warehouses |

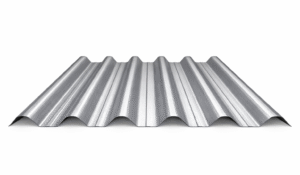

| GC / Corrugated | 762–990 | 76–90 | Classic look; good for small spans & cladding |
| Standing Seam | 420–600 (panel) | Seam‑locked | Superior leak protection; concealed fasteners |

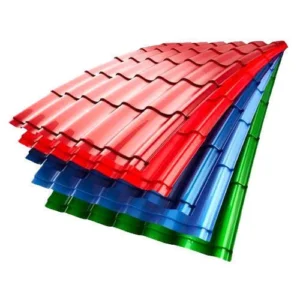

| Tile Profile | 980–1060 | Modular | Residential/commercial aesthetics |

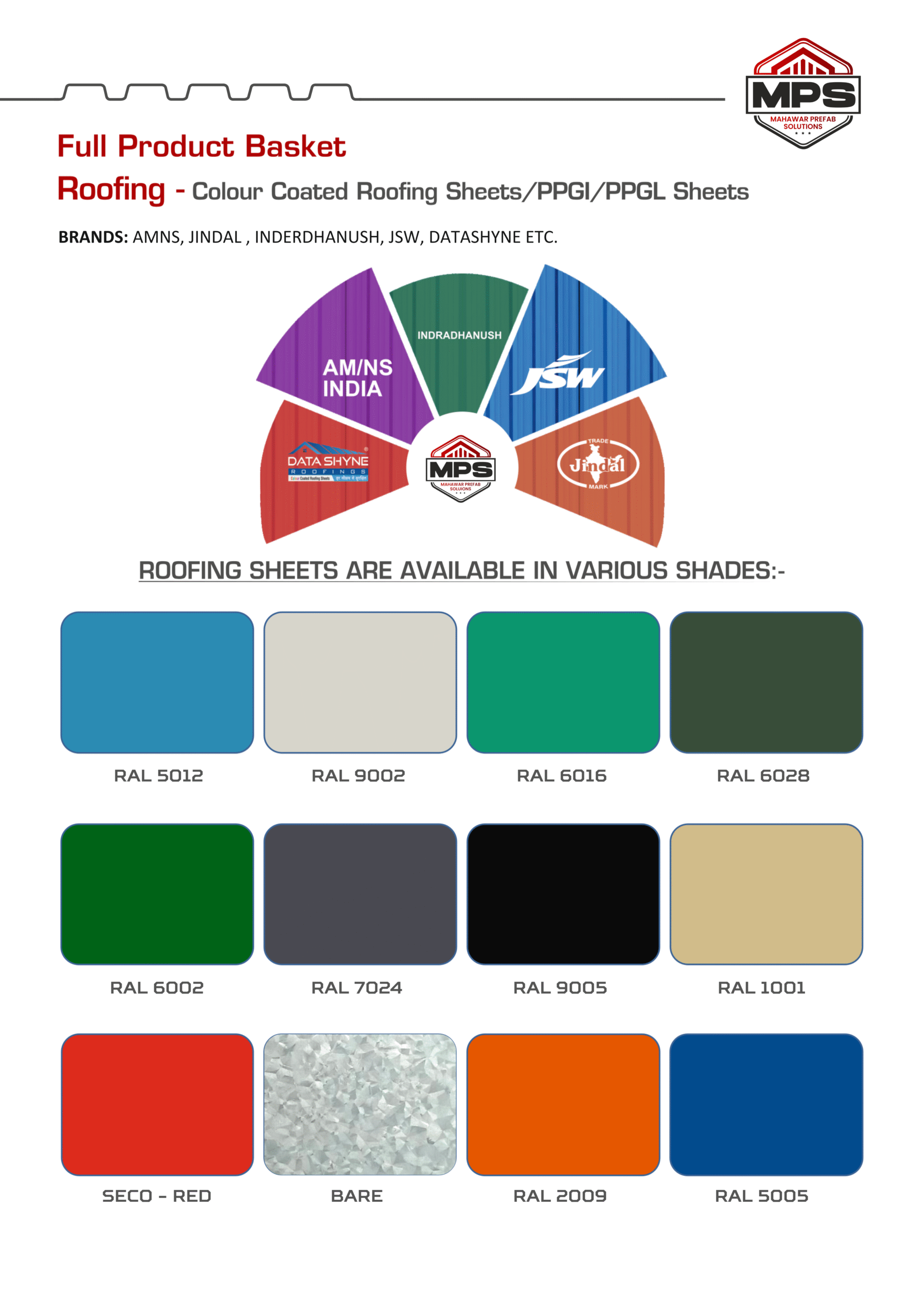

Brands We Deal In
- Tata
- JSW
- Jindal
- AM/NS
- Mahawar in‑house profiled sheets (from certified coils)
Authorised/approved supply as per availability and project need; all with Mill Test Certificates and brand warranty.
FAQs
1. What thickness should I choose?
General sheds: 0.47–0.50 mm; heavy‑duty/long spans/high wind: 0.60 mm+. Final selection depends on span, purlin spacing, and local wind loads.
2. Are color options and custom lengths available?
Yes—wide color palette in RMP/SMP/PVDF systems and cut‑to‑length service to reduce wastage and joints.
3. What is the expected life/warranty?
Depends on brand, coating (GSM/AZ), paint system, and site conditions. Indicatively 10–25 years as per mill warranty.
4. Do you provide installation support?
We supply sheets and accessories with fixing guidelines and can connect you with approved installation partners.
5. Are these sheets suitable for coastal/high‑temperature areas?
Prefer PPGL (AZ150/AZ200) with PVDF for such environments; share site details for precise recommendation.
6. How to maintain the roof for long life?
Keep gutters clean, avoid standing water, inspect fasteners/sealants periodically, and touch‑up scratches promptly.
7. Do you supply accessories as well?
Yes—ridges, gutters, downpipes, barge/eave trims, daylight sheets, ventilators, branded fasteners, and sealants.
8. Can I get span tables for design?
Yes—download our span tables or request an engineer consult with your purlin spacing and wind zone.
9. What documents are provided with supply?
Mill Test Certificates (MTC) and brand warranty as applicable, along with delivery challans and packing lists.
10. Do you ship PAN‑India?
Yes—PAN‑India dispatch with digital tracking and dispatch logs.
